TY1 Pro 2K+, Type-C

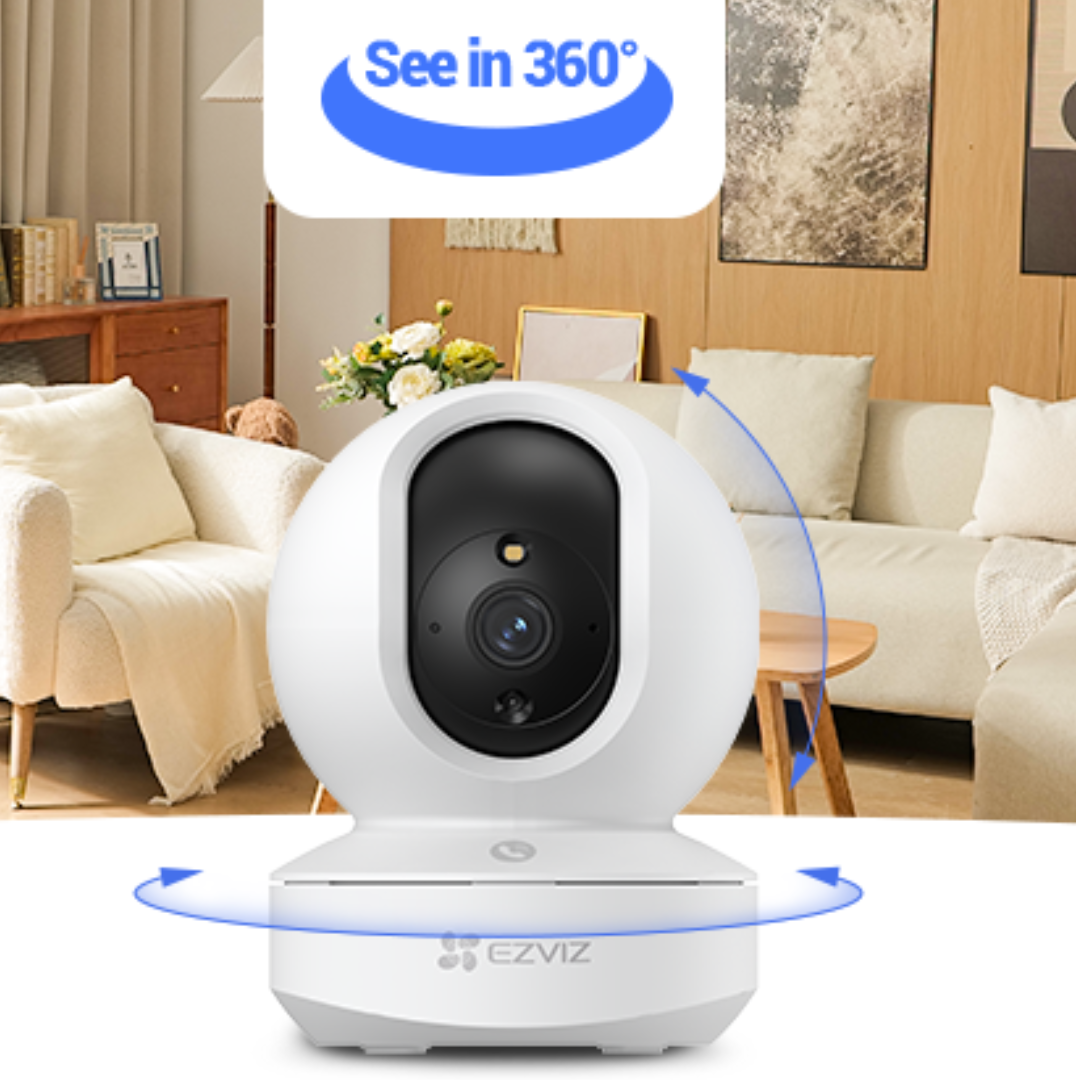

Unveiling TY1 Pro 2K+ , the newest innovation to experience next-level home security. It secures your home with sophisticated 2K+ lens. Swiftly responding to movements and sounds, this smart camera smartly rotates with no corner of your space unnoticed. What’s more, a handy call button keeps your family in close touch with you.

Specifications

Camera

• Resolution 4MP /2K⁺ Resolution
• Image sensor F1.6@1/3″ Progressive Scan CMOS
• Shutter Speed Self-adaptive shutter
• Lens 4mm
• Lens Mount M12
• Day & Night IR-cut filter with auto switch
• DNR 3D DNR
• WDR Digital WDR

Compression

• Video Compression H.264/H.265
• Video Bit Rate Adaptive bit rate.


• Max. Resolution 2560 × 1440
• Frame Rate Max:30fps; Self-Adaptive during network transmission

Network

• Smart Alarm Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
• Wi-Fi Pairing AP paring
• Protocol EZVIZ cloud proprietary protocol
• Interface Protocol EZVIZ cloud proprietary protocol

Interface

• Storage Micro SD card slot (Max. 512G)
• Power TYPE-C
• Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi

• Standard IEEE802.11a, 802.11b, 802.11g, 802.11n,
• Frequency Range 2.4G: 2400~2483.5MHz 5G: 5150MHz-5250MHz
• Channel Bandwidth Supports 20MHz
• Security WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7
• Output Power(EIRP) 19 dBm
• Antenna Gain 1.9 dBi

General

• Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
• Power Supply DC 5V/2A
• Power Consumption MAX. 8W
• IR Range MAX. 10 meters(32.81ft)

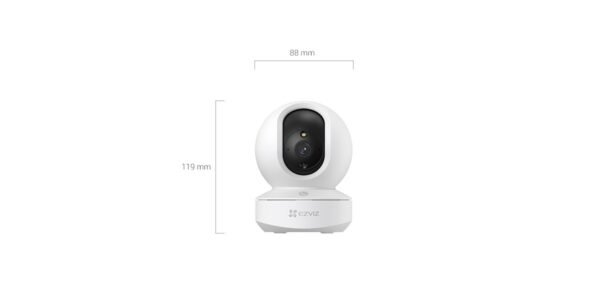

• Dimensions 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)
• Packaging Dimensions 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)
• Bare Weight 218g / 7oz

In the box

In the box – TY1 Pro 2K⁺ Camera
– Power Adapter
– Power Cable
– Drill Template
– Mounting Plate
– Screw Kit
– Regulatory Information
– Quick Start Guide
